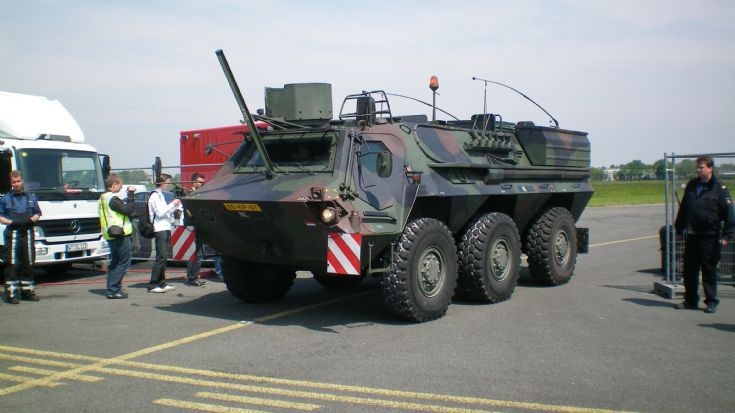

TPz (Transportpanzer) Fuchs (fox) is an armoured personnel carrier developed by Daimler-Benz and built by Thyssen-Henschel (now Rheinmetall Landsysteme) in 1979. It was the second wheeled armoured vehicle to be fielded in the Bundeswehr. It is used for various different tasks including troop-transport, engineer-transport, bomb disposal, NBC (Nuclear, Biological and Chemical) reconnaissance and electronic warfare. By mixing and matching the different models and retrofit kits, today more than 90 different combinations are possible, 32 of which have so far been produced. The TPz Fuchs is thus also referred to as a "retrofit platform".
The vehicles engine is a Mercedes-Benz Model OM 402A V-8 liquid-cooled diesel with an output of 320 hp. It has a max speed of 105 km/h and a range of 800 km. Fuchs is 7.33 m long, 2.98 m wide and 2.37 m high. It weighs 18.3 tons with the capability to carry an additional 6 tons in equipment. The 6x6 APC is characterized by high performance over all terrains and low noise. Its rear-mounted propellers and 360° turning range, enable the vehicle to take water obstacles in its stride at up to 10 km/h.
